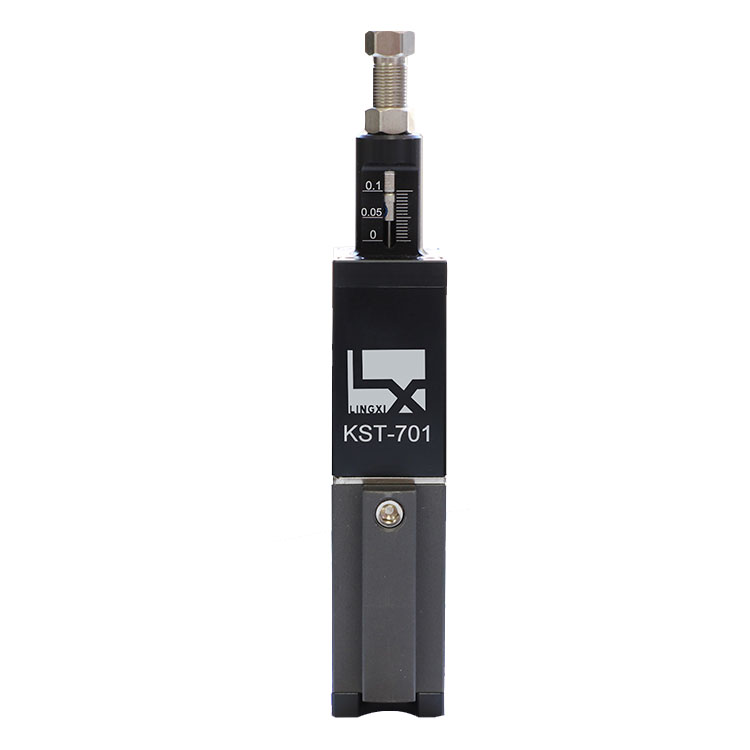

Precision metering valve: a precise tool in industrial control

Einstufung: Unternehmensdynamik Release time: 2024-9-18 17:25:21 Views:283

As a key component in the field of industrial fluid control, precision metering valve plays an indispensable role in many automated production processes due to its high precision, stability and reliability. This article will explore the working principle, structural characteristics and important role of precision metering valve in industrial control to provide readers with a comprehensive and in-depth understanding.

1. Working Principle of Precision Metering Valve

The working principle of precision metering valve is based on the volumetric quantity principle, which regulates the flow of fluid by accurately controlling the opening of the valve. The core is to control the opening of the valve by a regulating mechanism (such as a manual or automatic operating mechanism) to stabilize the fluid within a preset value or range. When the valve is opened, fluid enters the control system through the valve and the flow of fluid is adjusted accordingly as the opening of the valve changes. This control process can be achieved through an open loop or closed loop control system, where the closed loop control system monitors the flow change through a sensor and sends the feedback signal to the control device to achieve more precise flow control.

2. Construction Characteristics of Precision Metering Valve

Precision metering valves are usually composed of complex components such as valve body, valve, spring, regulator and sensor.

Valve Body: As a channel for fluid flow, the valve body must withstand certain pressure and temperature while ensuring smooth passage of fluid.

Valve: The valve is a component that is pushed by the fluid pressure on one side of the constant pressure effect. Its opening degree is controlled by the transmission mechanism to adjust the flow.

Spring: The spring is primarily used to provide stability and prevent flow control from being affected by pressure fluctuations.

Adjuster: The adjuster can be manual or automatic and is used to control the opening of the valve to achieve quantitative adjustment.

Sensor: The sensor is used to monitor flow changes and feed back signals to the adjustment device to ensure the accuracy of flow control.

3. The Important Role of Precision Quantitative Valves in Industrial Control

Precision quantitative valves play an important role in industrial control, which is mainly reflected in the following aspects:

Ensure the stability of flow control: By accurately adjusting the opening of the valve, the precision quantitative valve can ensure the stability of fluid flow and avoid the negative effects caused by excessive or too small flow.

Improve industrial process control efficiency: Precision quantitative valves can achieve quantitative and high-precision flow control, thereby improving the efficiency of industrial process control and optimizing production costs.

Adapt to flow control requirements under different operating conditions: Precision quantitative valves can adapt to flow control requirements under different working conditions such as pressure, temperature, flow, etc., and have wide application flexibility.

Improve product quality: In industrial processes that require precise control of fluid flow, precision metering valves can ensure product stability and consistency, thereby improving product quality.

In summary, precision metering valves play an indispensable role in industrial control with their high precision, stability and reliability. By accurately controlling the flow of fluids, it can ensure the stability and efficiency of industrial processes while improving product quality. With the continuous development of industrial technology, the performance and application range of precision metering valves will continue to expand, making greater contributions to the development of industrial automation and intelligence.
